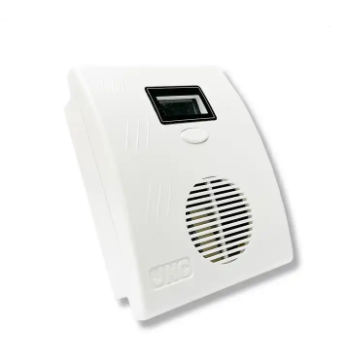

Smart controller Environment Monitoring CO2 Detector
Power
|
Adapter
|
◆AC Input:100~240V(50/60Hz) ◆DC output:5V, maximum 2A
|
Equipment
|
◆DC Output : 5V ◆Power consumption : ≦3W
|
|
Environment
|
-40~50℃,0%~95%(non-condensing)
|
|
Communication
|
Wi-Fi(ModBus TCP)and RS485(ModBus RTU)
|
|
Display Panel
|
0.96 inch LCD,Display measurement name, Numerical value and unit.
|
|
Physical conditions
|
Dimension (mm)
|
104x135x40 (W x H x D)
|
Weight
|
128 g
|
|
Installation
|
Wall mounting /Portable /Desktop
|
|
Housing
|
Material
|
ABS
|
Certificate
|
FCC Part 15:Subpart B Class B CISPR 22:2008 Class B,
EN55022:2010:Class B,EN55032:2012:Class B,EN61326-1:2013,IEC61000-4-2:2008, IEC61000-4-8:2009,IEC61000-4-3:2006+A1:2007+A2:2010 |
Sensors
Principle |
Range
|
T90
|
Operating temperature
|
Resolution
|
Accuracy
|
Environmental equilibrium time
|
PM2.5
(Laser) |
0~1,000μg/m3
|
<90 S
|
-40℃~65℃
|
0.1 μg/ m 3
|
±10μg/ m 3±5% of Reading
|
5min
|
Make your Intelligent home with JNC SD device.
SD is a single gas sensor. According to your request, you are able to choose the type of detection which you need, plug and play.
Although the industrial-grade sensors are precise in measurement, but the price is too expensive. Even though industrial-grade sensors relate to life safety and livelihood in needs, they’re not affordable for ordinary families. The JNC single gas sensor is manufactured by following high standards of the measurement of industrial instrument, and it apply to people’s livelihood. Guard your health and life.
SD is a gas early warning system which can be built on your own.

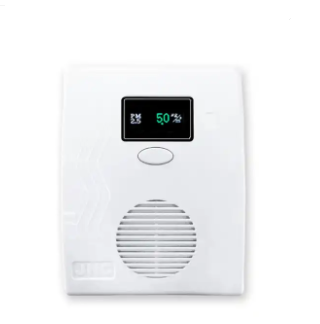

The gas type and numerical value can be displayed.
Abnormal buzzer warning and reset button.
The browser can monitor, and it don’t need to download App and back-end server.
It can be used for mobile and continuous monitoring.
Built-in with a rechargeable battery, it lasts for 4 hours.
